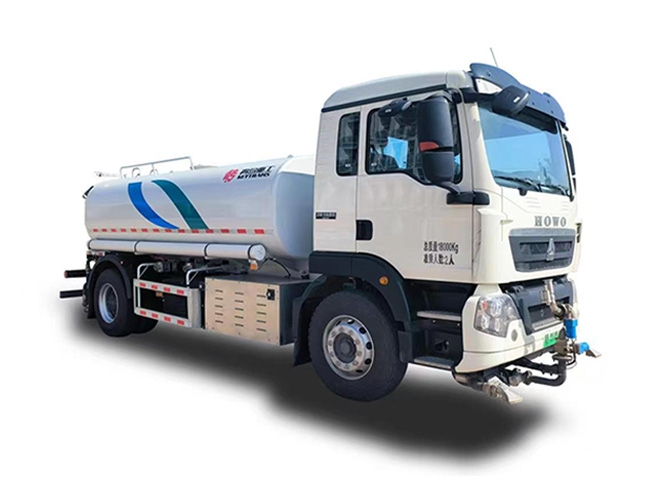

HOWO-TXEV battery electric cleaning tanker

The battery electric cleaning tanker is suitable for the flushing of diversified road surfaces, the construction of trees, green belts, lawn greening, roads, and factories and mines, and the flushing of high-rise buildings. It incorporates the water sprinkling, dust suppression, and high-position and low-position spraying functions.

1. The electrophoresis anti-corrosion treatment can be taken for the water tank to realize good anti-corrosion performance.

2. The low water level sensing and warning system automatically alarms at low water level and the water level in the water tank can be directly observed by the level gauge.

3. The superstructure is driven by permanent magnet synchronous motor. The CAN control system realizes the acquisition and display of motor working parameters and the control of working mode. The working mode is controlled by electromagnetic pneumatic ball valve.

4. The cab is internally installed with color display screen to real-time monitor the superstructure status and allow the one-touch operation.

5. The low pressure water pump of domestic renowned brand is used to guarantee the reliable performance. The water pump pressure is steplessly adjustable and is independently controlled to allow the use of high water pressure at low vehicle speed and achieve better cleaning capability.

6. The optional front automatic water monitor is controlled within the cab to realize the ON/OFF control and adjustment in vertical and lateral directions.

Technical parameter

Product model QDZ5180GQXZHTX45BEV
Chassis model ZZ1187N451GZ1EV
Drive motor model TZ230XS-ZQRM100V07/TZ230XS-ZQRM130V08
Rated power of drive motor 50+70 (kW) (100+130 peak)
Battery capacity (kWh) 210
Overall dimensions of vehicle (mm) 8030,8330×2500×3020
Gross weight (kg) 18000
Curb mass (kg) 8660
Wheelbase (mm) 4500
Effective capacity of water tank (m3) 9.1
Water suction depth of pump (m) 6.5
Opposed flushing width (m) ≥24
Sprinkling width (m) 14-18
Rear water monitor range (m) 35-40
Sprinkling flow (L/min) 600-800
Front automatic water monitor range (m) ≥25m
#
